Brandmatic Specs
Brandmatic is a highly configurable platform, with lots of design options. In this guide, we have outlined all the available options, along with the required specifications.
We highly recommend that your designer has a play with the demo site, so they can see what’s possible, before they start designing assets.
Specs Index
Required Items
Optional Items (these are included, but you dont have to use them)
Optional Items (these are only required if you have added then to your order)
App Start Screen
This is the first screen that greets users. Usually it has some sort of prompt as to what to do, or how to use it. This screen can also be a video file, or a more dynamic feel.
Please provide the logo as a seperate file.
Size: 720 x 1280
File Format: JPG or MP4 (see video example)

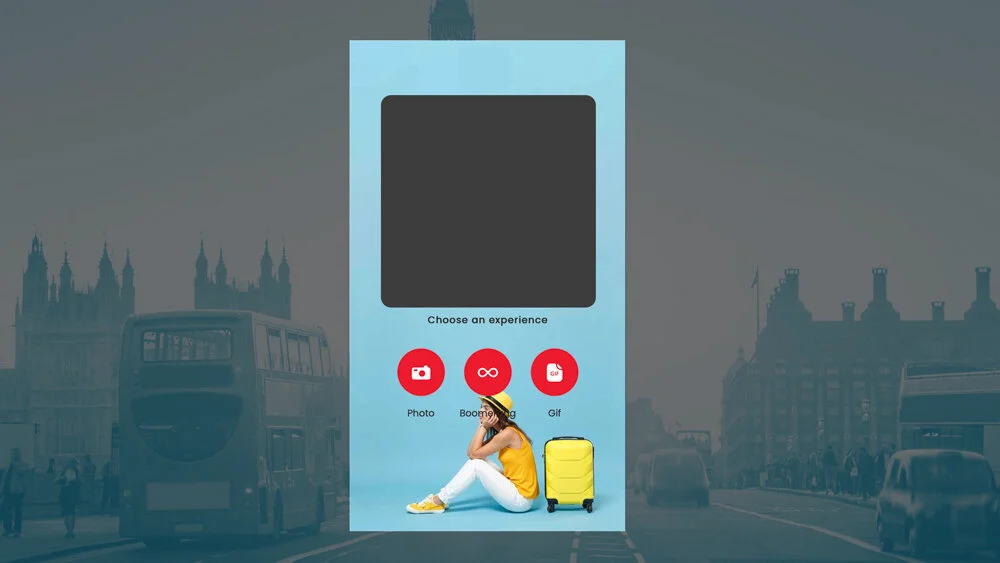

App Background
This is the screen displayed after the user has pressed the “Start” button. This screen sits behind the buttons, live view and logo. It can be a different image to the one on the start screen.
Note: On this screen, the logo is autosized, and may not scale well. Please provide the logo as a seperate file as we may need to re-position it.
Size: 720 x 1280
File Format: JPG
Desktop Background
This image is displayed behind the App Screen, and is only viewable to users on tablets, or desktop PCs.
Size: 3840 x 2160
File Format: JPG
Buttons
Button Background HEX Code: eg #FF0000
Font HEX Code: eg #FFFFFF
Default Font: Poppins
Custom Font: Any available Google Font (see fonts.google.com)
Photo Frame
The photo overlay gets applied to the image
Size: 1080 x 1080
File Format: PNG
GIF & Boomerang Frames
GIF & Boom overlays can be static (a single overlay), or animated (multiple overlays) and can also have a soundtrack behind them. You can have up to 3 different user choices.
Size: 1080 x 1080
File Format: PNG
Animated GIF: 3 overlay PNG frames
Animated Boom: 10 PNG overlay frames
Soundtrack: 10 second mp3
Stickers
Stickers can be places on photos (not GIFs, or booms) after the image has been captured.
Size: 500 x 500
File Format: PNG
Virtual Backgrounds
Virtual Backgrounds are an optional add-on.
Size: 1080 x 1080
File Format: JPG
The email is what the guest receive if they choose to email the image to themselves. You can either design a full HTML email, or just send the logos and copy and we’ll base the design on the app design.
Disclaimer / T&C’s
The Disclaimer / T&C’s are presented to the user the first time they take a photo. Once they accept the terms, they do not need to accept them again.
Terms can include hyperlinks (so you can link to existing terms on your own website)
Note: these are to cover any specific terms (eg competitions, data usage etc) between you and your users, not between Brandmatic and you (which is already covered off).
App URL/Domain
Your platform can be hosted on one of our domains:
app.brandmatic.co/your-event
guest.camera/your-event
Or you can use your own domain eg:
photos.yourbrand.com/go
acmephotobooth.com/cheese
In this case you will need to set your CNAME settings as follows
CNAME Record yourdomain.com -> Brandmatic.vbth.app TTL 600
Mosaic
The mosaic overlay should contain less opacity (or transparency), where you want more of the images to show through, and more opacity (or no transparency) where you want to show less (or even hide) the images.
Download the sample images from below, to help aid in designing your mosaic.
Size: 1920 x 1080
Overlay File Format: PNG and/or layered PSD.
